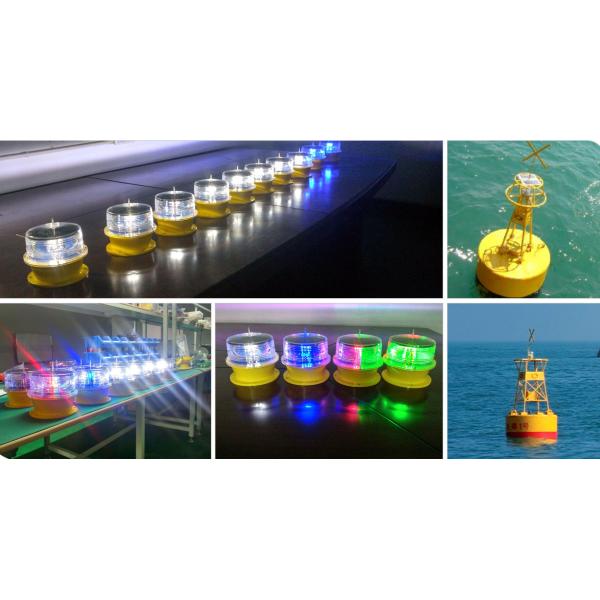

Waterproof Visibility 3.5NM Solar Power 12V Red Marine Navigation Lantern

Product Categories

Juvi Marine Machinery Co.,LTD

Contact Now

Waterproof Visibility 3.5NM Solar Power 12V Red Marine Navigation Lantern

Brand Name : JV

Model Number : JVL-74

Certification : CE,RoHs

Place of Origin : China

MOQ : 1pcs

Price : $50-68pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000pcs/Month

Delivery Time : 10-15 days

Packaging Details : Standard export package

LED color : Red, Green, Blue, Yellow, White

Product Name : Marine Lantern

Visibility : 1~3.5NM(TC=0.74)

Dimension(mm) : 160x160x160mm

Working temperture : -40℃~+70℃

Protection class : IP68

Humidity : 0~100%

Weight : 1kg

Contact Now

Marine Navigation Light Solar Power Led Boat Light 12V Red Marine Lantern

SPECIFICATIONS	JV-LS/C LED Solar Powered Marine Lanterns
Light Characteristics
Light Source	LED
Available Colors	Red, Green, Yellow, White, Blue
Visible Range (KM)	6
Horizontal Output(degrees)	360
Vertical Divergence(degrees)	7
Flash Characteristics	Adjustable Steady-burning/Flash mode
Operation Mode	Dusk-to-dawn Automatically (Built-in photocell)
LED Life Experience(hours)	>100,000
Electrical Characteristics
Operating Voltage	3.7Vdc
Power(W)	1
Circuit Protection	Integrated
Solar Characteristics
Solar Module Type	Monocrystalline Silicon
Output(watts)	1
Charging Regulation	Microprocessor controlled
Battery Characteristics
Battery type	Lithium-ion battery
Battery Capacity (Ah)	6
Nominal Voltage (V)	3.7
Battery Service Life	Average of 3 years
Autonomy (hours)	Steady: 60
	Flashing: 150
Physical Characteristics
Body Material	UV protected Polycarbonate
Base Material	Powder-coated Die-casting aluminum
Mounting(mm)	140×140×M6
Dimension(mm)	162 by 162 by 160
Weight(kg)	1
Product Life Expectancy	Average of 5 years
Environmental Factors
Humidity	0~100%
Wind Speed	80m/s
Waterproof	IP68
Compliance
IALA	Signal colors compliant to IALA E-200-1
Options Available	Charging port
	Remote Control
	256 flashing light characteristics
	Auto/Manual toggle switch

Waterproof Visibility 3.5NM Solar Power 12V Red Marine Navigation Lantern

Features:

Electrical:

* Based on LED technology, and its color complies with IALA Recommendations E-200-1.
* LED technology reduces maintenance time & costs

Physical:

* Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
* PC housing, UV resistance, shockproof, and corrosion-proof.
* Bird deterrent spike
* Powder-coated die-casting aluminum base
* Built-in monocrystalline silicon solar panel, the conversion efficiency is better than polycrystalline silicon

System design:

* Built-in photocell for day/night operation (dusk to dawn operation)
* User-adjustable working mode between steady&flashing(20fpm)
* ON/OFF button interface located under the base

Compliance: IALA E-200-1

Compliance: This Solar Marine Lantern is used on the buoy, lighthouse , and any other off shore site for marine/river safe navigation.

Optional:

* Rotary switches for adjust 256 flash characteristics comply with IALA
* User-adjustable operation mode to toggle between dusk-till-dawn & 24hr operation
* External charger
* Wireless remote control
* Bluetooth remote control
* Infrared remote control
* GSM Monitoring
